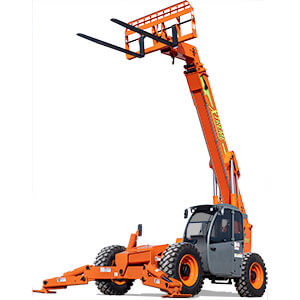

Name: XR1044-B
SKU: 16182
Availability: InStock

Description

The ideal balance of reach, height, capacity, and maneuverability.

360° operator visibility
Ductile steel manifold
Suspension seat
Easy cab mounted grab handles
Easy service access
Master disconnect switch
Protected tilt & extend cylinders
Boom lift point
Steel hydraulic & fuel tanks
Manual lowering valve (cylinders)
Long life Lexan labels
Large cross section boom
Heavy duty boom chains
Easy tie downs
Suspended pedals
Heavy duty pre-cleaner
Large capacity fuel tank
Additional high pressure hydraulic filter
Trunnion mounted sway cylinders Individual gauges/switches
Melonite pins
Steel hood
Standard auxiliary hydraulics
Solid steel plate chassis
Steel dash
Rear axle stabilization (RAS)
Center mounted powertrain
Back up alarm with light
Long life boom rollers
Dual batteries
Cab step
Limited slip front axle
Electrical aux hydraulic control

Additional information

Class Carriage	B
Capacity Weight	10,000 lbs
Lift Height	44 ft
Forward Reach	28 ft 10 in
Frame Leveling L/R	11 degrees
Machine Weight	31,320 lbs
Engine	Cummins 3.8L 74 hp HT (Tier 4F)
Axles	ZF MST3055 / 3060
Transmission	ZF 3WG94
Fuel Capacity	50 gal
Tires	Foam Filled 15.5 x 25
Hydraulic Flow (per min)	49 gal
Hydraulic Pressure	3,500 psi
Hydraulic Oil Capacity	62 gal
Length to fork face	21 ft
Width	101 in
Height	8 ft
Wheel Base	125 in
Ground Clearance	16.5 in
Turning Radius	12 ft

Options

Cab Options

Options

Pintle hook
Flashing amber strobe
Boom work lights – LED
Rear cab work lights – LED
Tail, turn, running, brake lights
Enclosed cab clear glass
Machine lift points (qty 4)
Swivel hook
Steel fenders (qty 4)
Boom maintenance stand
Cable reel
Special paint (excluding cab)
Special paint (including cab)
Flashing green strobe
Back up camera
Top curved cab glass
Battery blanket
Hydraulic tank heater
Cab heater (aux)
Cold weather synthetic oil
Fuel cap – locking
Outriggers
Coordinated Motion

Carriage Options

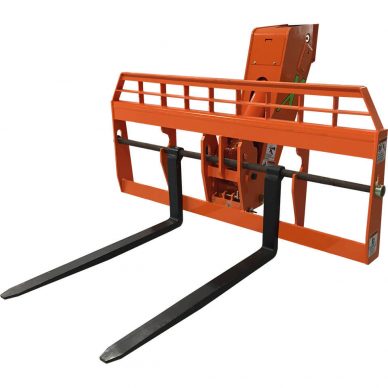

Carriage 48″ fixed

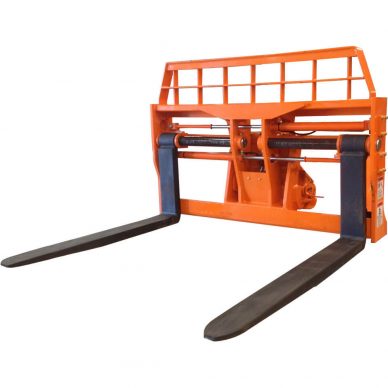

Carriage 48″ fork positioning

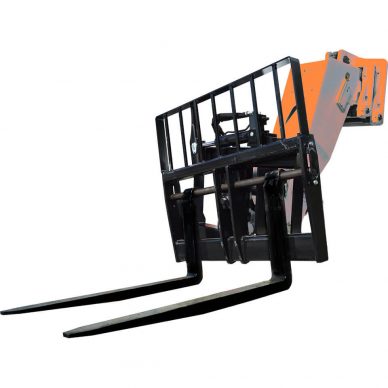

Carriage 48″ side tilt – 8,000 lbs
Carriage 52″ swing – 8,000 lbs
Carriage 60″ fixed
Carriage 60″ fork positioning
Carriage 72″ fixed
Carriage 72″ fork positioning
Carriage 72″ side tilt – 8,000 lbs
Carriage 72″ side tilt – 12,000 lbs
Carriage 72″ swing – 12,000 lbs
Carriage 72” – Rake
Carriage 96″ fixed

*maximum lift capacity on this machine is limited to 8,000 lbs.

Fork Tines Options

4″ x 2.25″ x 48″ (quantity 2)
4″ x 2.25″ x 60″ (quantity 2)
5″ x 2.25″ x 48″ (quantity 2)
5″ x 2.25″ x 60″ (quantity 2)
6″ x 2″ x 72″ (quantity 2)
6″ x 2″ x 96″ (quantity 2)
7″ x 1.75″ x 48″ (quantity 2)
7″ x 1.75″ x 60″ (quantity 2)
7″ x 2.25″ x 60″ (quantity 2)
6″ x 2.25″ x 60″ (quantity 2)
6″ x 2″ x 48″ full taper (quantity 2)
2″ x 2″ x 48″ block (quantity 2)
2″ x 3″ x 48″ block (quantity 2)

Tire Options

Attachments

Telematics

Load Chart

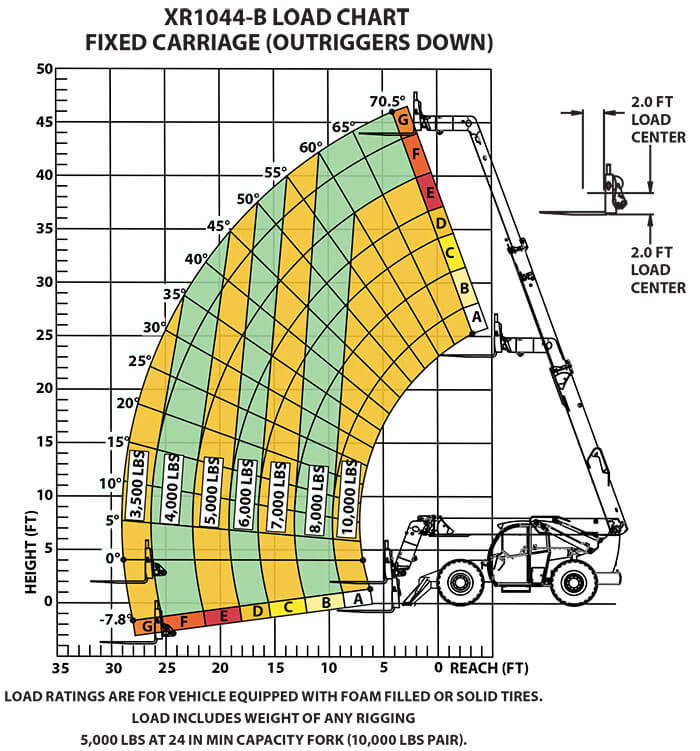

Load Chart XR1044-B Fixed Carriage (Outriggers Down)

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
