44 ft

Lift Height

10,000 lbs

Capacity

Engine

max

Maximum Height

Capacity Weight

28 ft 10 in

Forward Reach

Bed Capacity

two capacity

Tow Capacity

Bed Length

Dove Tail Capacity

Cummins 15L Engine

Minumum Height

Inside Ramp Width

Max Lift Height

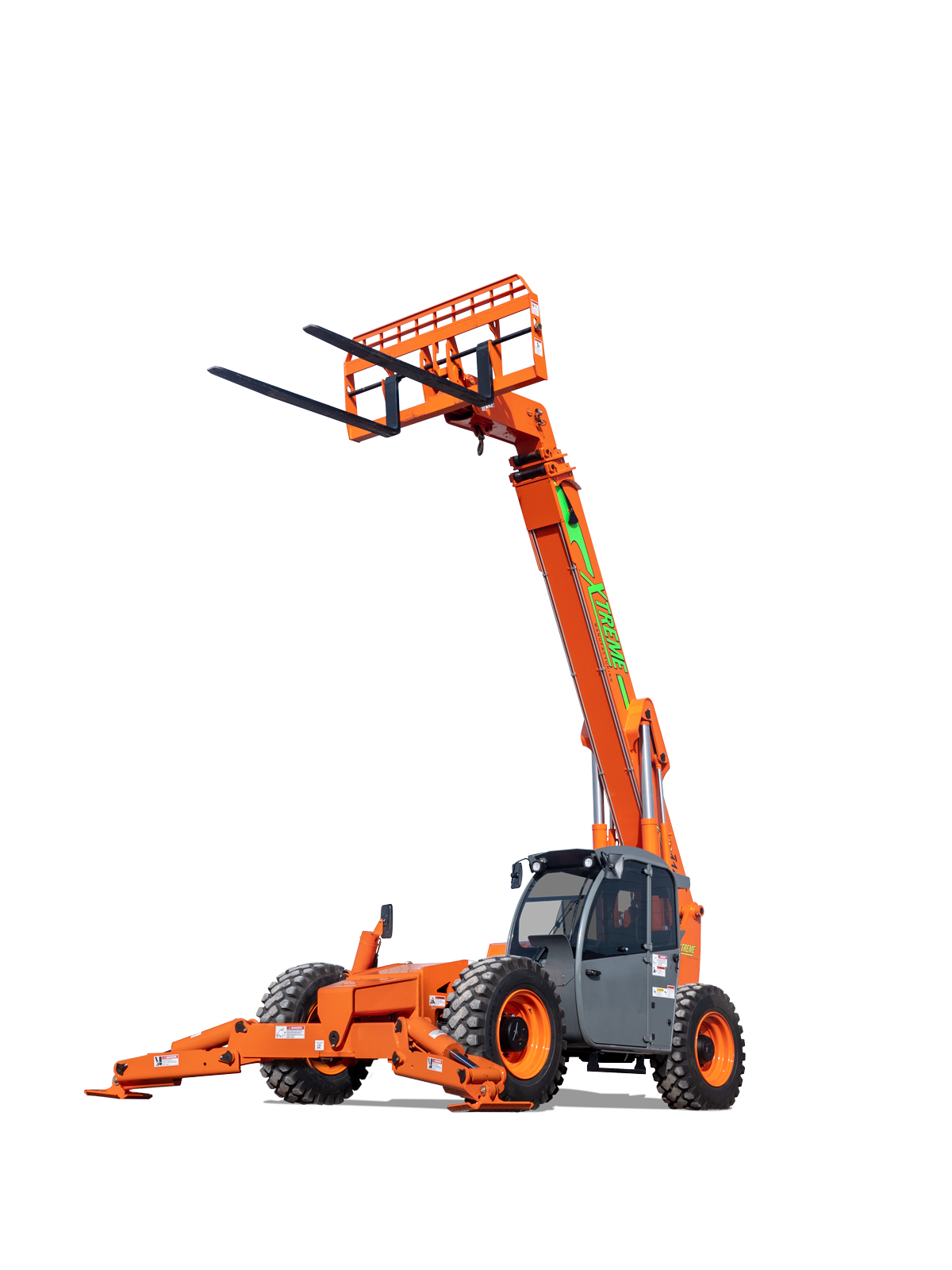

XR1044-B

Model

The ideal balance of reach, height, capacity, and maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals
  • Heavy duty pre-cleaner
  • Large capacity fuel tank
  • Additional high pressure hydraulic filter
  • Trunnion mounted sway cylinders Individual gauges/switches
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Back up alarm with light
  • Long life boom rollers
  • Dual batteries
  • Cab step
  • Limited slip front axle
  • Electrical aux hydraulic control
Class Carriage
B
Capacity Weight
10,000 lbs
Lift Height
44 ft
Forward Reach
28 ft 10 in
Frame Leveling L/R
11 degrees
Machine Weight
31,320 lbs
Engine
Cummins 3.8L 74 hp HT (Tier 4F)
Axles
ZF MST3055 / 3060
Transmission
ZF 3WG94
Fuel Capacity
50 gal
Tires
Foam Filled 15.5 x 25
Hydraulic Flow (per min)
49 gal
Hydraulic Pressure
3,500 psi
Hydraulic Oil Capacity
62 gal
Length to fork face
21 ft
Width
101 in
Height
8 ft
Wheel Base
125 in
Ground Clearance
16.5 in
Turning Radius
12 ft
Enclosed Cab W/ Heat
Enclosed Cab W/ Heat & Ac
Open Cab
ADJ Carriage 48″ (Fork Positioning)
Fixed Carriage 48″
Fixed Carriage 60″
Fixed Carriage 72″
Fixed Carriage 96″
Swing Carriage 72″
Swing Carriage 52″
ADJ Carriage 60″ (Fork Positioning)
ADJ Carriage 72″ (Fork Positioning)
Side Shift Carriage 50″
Side Tilt 48″
Side Tilt 52″
Side Tilt 72″
Carriage Fork 3 X 2.00 X 48
Carriage Fork 4 X 2.25 X 42
Carriage Fork 4 X 2.25 X 48
Carriage Fork 4 X 2.25 X 60
Carriage Fork 5 X 2.25 X 48
Carriage Fork 6 X 2.50 X 72
Carriage Fork 5 X 2.25 X 60
Carriage Fork 6 X 2.00 X 120
Carriage Fork 6 X 2.00 X 144
Carriage Fork 6 X 2.00 X 72
Carriage Fork 6 X 2.00 X 96
Carriage Fork 6 X 2.75 X 96
Carriage Fork 7 X 1.75 X 48
Carriage Fork 7 X 1.75 X 60
Carriage Fork 7 X 2.25 X 60
Carriage Fork 7 X 2.25 X 72
Carriage Fork 7 X 2.25 X 96
Carriage Fork 6 X 2.00 X 48 Full Taper
Carriage Fork 6 X 2.00 X 48 Full Taper DW
Carriage Fork 5 X 2.25 X 48 Full Taper
Carriage Fork 6 X 2.25 X 48 Full Taper
Block Fork 2 X 2 X 48
Block Fork 2 X 2 X 42
Carriage Fork 6 X 2 X 96 Full Taper
Carriage Fork 6 X 2.25 X 72 (2.50 Dia Pin)
Foam Filled Tires 15.5 X 25 G2
Foam Filled Tires 15.5 X 25 E3
Solid Tires 14 X 24
Battery Blanket
Boom Maintenance Stand
Boom Work Lights-LED
Cold Weather Synthetic Oil
Custom Decal Setup
Enclosed Cab Clear Glass
Flashing Amber Beacon (Strobe)
Flashing Green Strobe
Fuel Cap Locking
Hydraulic Tank Heater
Machine Lifting Points
Rear Cab Work Lights-LED
Rear Camera Option
Rotating Amber Beacon
Special Paint (Excluding The Cab)
Special Paint (Including The Cab)
Swivel Hook
Steel Fender Option
Tail/Turn Lights W/Strobe
Cab Heater-Auxilliary
Tail/Turn Lights W/o Strobe
KIT, LMI Dovertwg
Coordinated Motion
Breather Heater/High Idle
120hp Engine Upgrade
Cable Reel
Pintle Hook
Dual Batteries
Top Curved Glass
No Accessory Products found.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
