REQUEST A QUOTE

Lift Height

15,000 lbs

Capacity

120 hp (Tier 4F)

Engine

max

Maximum Height

Capacity Weight

Forward Reach

Bed Capacity

two capacity

Tow Capacity

Bed Length

Dove Tail Capacity

Cummins 15L Engine

Minumum Height

Inside Ramp Width

55 ft

Max Lift Height

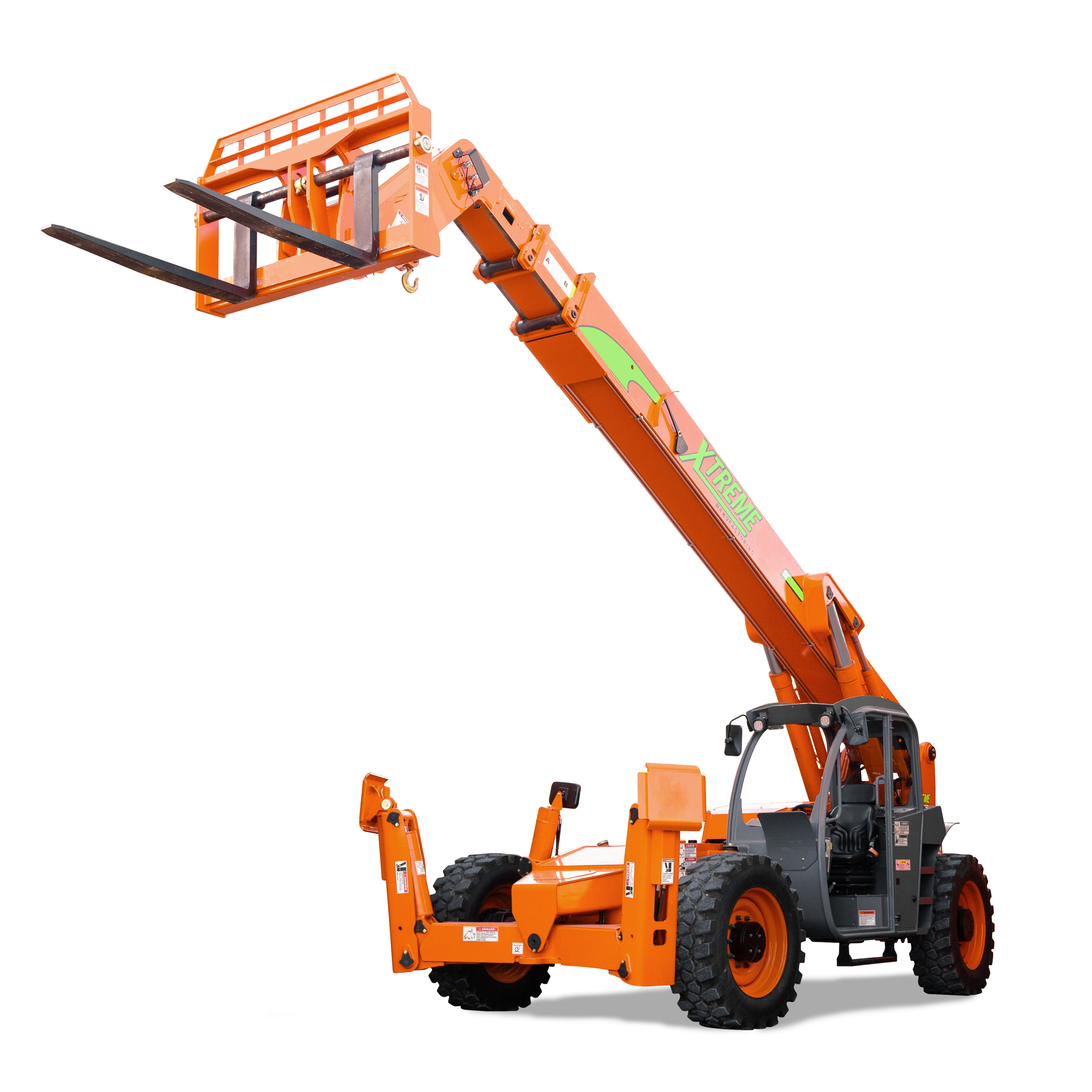

XR1555-C

Model

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Steel hood
  • Standard auxiliary hydraulics
  • Solid steel plate chassis
  • Steel dash
  • Rear axle stabilization (RAS)
  • Center mounted powertrain
  • Wider outrigger stance
  • Long life boom rollers
  • Back up alarm with light
  • Dual batteries
  • Cab step
Class Carriage
C
Capacity Weight
15,000 lbs
Lift Height
55 ft
Forward Reach
38 ft 5 in
Frame Leveling L/R
11 degrees
Machine Weight
38,460 lbs
Engine
Cummins 3.8L 120 hp (Tier 4F)
Axles
Dana 213
Transmission
Dana T20000
Fuel Capacity
100 gal
Tires
Foam Filled 15.5 x 25
Hydraulic Flow (per min)
49 gal
Hydraulic Pressure
3,800 psi
Hydraulic Oil Capacity
62 gal
Length to fork face
25 ft 9 in
Width
101 in
Height
8 ft 3 in
Wheel Base
141 in
Ground Clearance
16.5 in
Turning Radius
14 ft
Outriggers
Yes
Enclosed Cab W/ Heat
Enclosed Cab W/ Heat & Ac
Open Cab
Fixed Carriage 60″
Fixed Carriage 72″
Fixed Carriage 96″
ADJ Carriage 96″ (Fork Positioning)
Swing Carriage 72″
ADJ Carriage 60″ (Fork Positioning)
ADJ Carriage 72″ (Fork Positioning)
Side Tilt 52″
Side Tilt 72″
Side Shift With Fork Adjust Carriage 96″
Carriage Fork 4 X 2.25 X 48
Carriage Fork 6 X 2.50 X 72
Carriage Fork 7 X 1.75 X 60
Block Fork 2 X 2 X 48
Carriage Fork 6 X 2.50 X 60
Carriage Fork 6 X 2.50 X 96
Carriage Fork 7 X 3.00 X 72
Carriage Fork 6 X 2.50 X 48
Carriage Fork 6 X 2.50 X 120
Carriage Fork 7 X 2.50 X 60
Carriage Fork 7 X 3.00 X 60
Carriage Fork 4 X 2.38 X 48
Carriage Fork 7 X 3.00 X 96
Foam Filled Tires 15.5 X 25 G2
Foam Filled Tires 15.5 X 25 E3
Solid Tires 14 X 24
Solid Tires 14 X 24 Camso TLH Non-marking
Battery Blanket
Boom Maintenance Stand
Boom Work Lights-LED
Cold Weather Synthetic Oil
Enclosed Cab Clear Glass
Flashing Amber Beacon (Strobe)
Flashing Green Strobe
Fuel Cap Locking
Hydraulic Tank Heater
Machine Lifting Points
Rear Cab Work Lights-LED
Rear Camera Option
Rotating Amber Beacon
Special Paint (Excluding The Cab)
Special Paint (Including The Cab)
Swivel Hook
Steel Fender Option
Tail/Turn Lights W/Strobe
Cab Heater-Auxilliary
Tail/Turn Lights W/o Strobe
KIT, LMI Dovertwg
Customer Decal Setup
Coordinated Motion
Breather Heater/High Idle
Fire Extinguisher
Top Curved Glass
White Noise Backup Alarm
Limited Slip Axle-Front (Dana 213)
Cabel Reel
Pintel Hook
Bucket 1.00 Yd
Sling Mount
Truss Boom 12′ (Star)
Truss Boom 15′ (Star)
Truss Boom 2′ (Star)
Pole Grapple 7260 Custom W/Shoe
Bucket 1.65 Yd
Bucket 2.00 Yd
Personnel Platform 4′ X 9.97′
Personnel Platform 4′ X 6′
Personnel Platform 4′ X 4′
Personnel Platform 4′ X 8′
Truss Boom W/ Winch 3′ (Bradco)
Truss Boom W/ Winch 12′ (Bradco)
Pole Grapple 7260
Bucket Grapple Open Bottom
Pole Grapple 9660 Custom W/Shoe
Pole Grapple 9660
No Accessory Products found.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
