Lift Height

17,000 lbs

Capacity

Engine

max

Maximum Height

Capacity Weight

17 ft

Forward Reach

Bed Capacity

two capacity

Tow Capacity

Bed Length

Dove Tail Capacity

Cummins 15L Engine

Minumum Height

Inside Ramp Width

34 ft

Max Lift Height

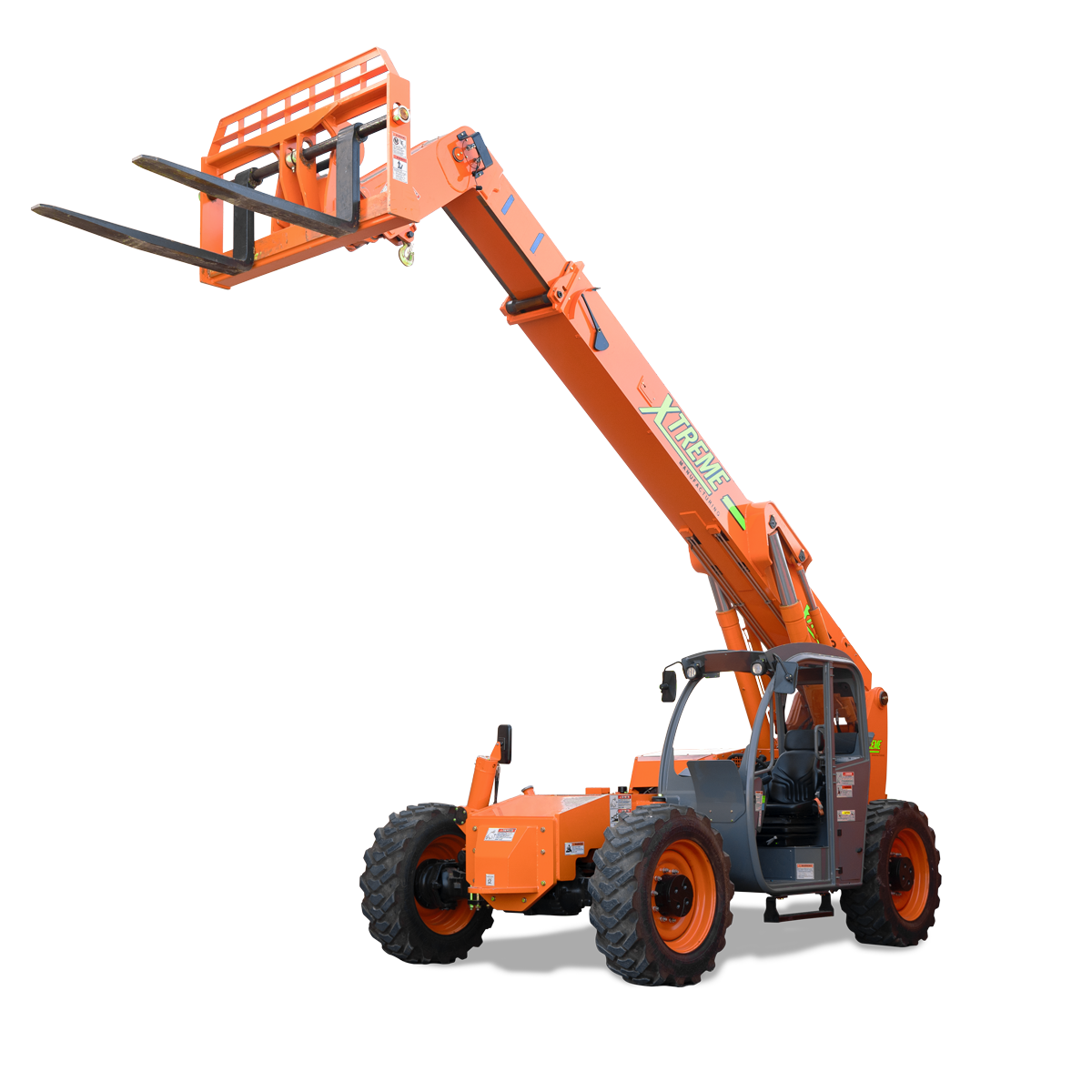

XR1734-C

Model

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Heavy duty boom chains
  • Easy tie downs
  • Suspended pedals ˝Y˝ frame handle
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Trunnion mounted sway cylinders
  • Additional high pressure hydraulic filter
  • Melonite pins
  • Individual gauges/switches
  • Standard auxiliary hydraulics
  • Steel hood
  • Steel dash
  • Solid steel plate chassis
  • Center mounted powertrain
  • Rear axle stabilization (RAS)
  • Long life boom rollers
  • No outriggers
  • Dual batteries
  • Back up alarm with light
  • Cab step
  • Electrical aux hydraulic control
Class Carriage
C
Capacity Weight
17,000 lbs
Lift Height
34 ft
Forward Reach
17 ft
Frame Leveling L/R
11 degrees
Machine Weight
33,360 lbs
Engine
Cummins 3.8L 120 hp (Tier 4F)
Axles
Dana 213
Transmission
Dana T20000
Fuel Capacity
50 gal
Tires
Foam Filled 15.5 x 25
Hydraulic Flow (per min)
49 gal
Hydraulic Pressure
3,800 psi
Hydraulic Oil Capacity
62 gal
Length to fork face
22 ft
Width
101 in
Height
8 ft 2 in
Wheel Base
125 in
Ground Clearance
16.5 in
Turning Radius
12 ft
Outriggers
No
Enclosed Cab W/ Heat
Enclosed Cab W/ Heat & Ac
Open Cab
Fixed Carriage 48″
Fixed Carriage 60″
Fixed Carriage 72″
Fixed Carriage 96″
ADJ Carriage 96″ (Fork Positioning)
Swing Carriage 72″
ADJ Carriage 60″ (Fork Positioning)
ADJ Carriage 72″ (Fork Positioning)
Side Tilt 52″
Side Tilt 72″
Side Shift With Fork Adjust Carriage 96″
Carriage Fork 4 X 2.25 X 48
Carriage Fork 6 X 2.50 X 72
Carriage Fork 7 X 1.75 X 60
Block Fork 2 X 2 X 48
Carriage Fork 6 X 2.50 X 60
Carriage Fork 6 X 2.50 X 96
Carriage Fork 7 X 3.00 X 72
Carriage Fork 6 X 2.50 X 48
Carriage Fork 6 X 2.50 X 120
Carriage Fork 7 X 2.50 X 60
Carriage Fork 7 X 3.00 X 60
Carriage Fork 4 X 2.38 X 48
Carriage Fork 7 X 3.00 X 96
Foam Filled Tires 15.5 X 25 G2
Foam Filled Tires 15.5 X 25 E3
Solid Tires 14 X 24
Solid Tires 14 X 24 Camso TLH Non-marking
Battery Blanket
Boom Maintenance Stand
Boom Work Lights-LED
Cold Weather Synthetic Oil
Custom Decal Setup
Enclosed Cab Clear Glass
Flashing Amber Beacon (Strobe)
Flashing Green Strobe
Fuel Cap Locking
Hydraulic Tank Heater
Machine Lifting Points
Rear Cab Work Lights-LED
Rear Camera Option
Rotating Amber Beacon
Special Paint (Excluding The Cab)
Special Paint (Including The Cab)
Swivel Hook
Steel Fender Option
Tail/Turn Lights W/Strobe
Cab Heater-Auxilliary
Tail/Turn Lights W/o Strobe
KIT, LMI Dovertwg
Coordinated Motion
Breather Heater/High Idle
Fire Extinguisher
Top Curved Glass
White Noise Backup Alarm
Limited Slip Axle-Front (Dana 213)
Pintel Hook
No Accessory Products found.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
