34 ft

Lift Height

20,000 lbs

Capacity

Engine

max

Maximum Height

Capacity Weight

16 ft 7 in

Forward Reach

Bed Capacity

two capacity

Tow Capacity

Bed Length

Dove Tail Capacity

Cummins 15L Engine

Minumum Height

Inside Ramp Width

Max Lift Height

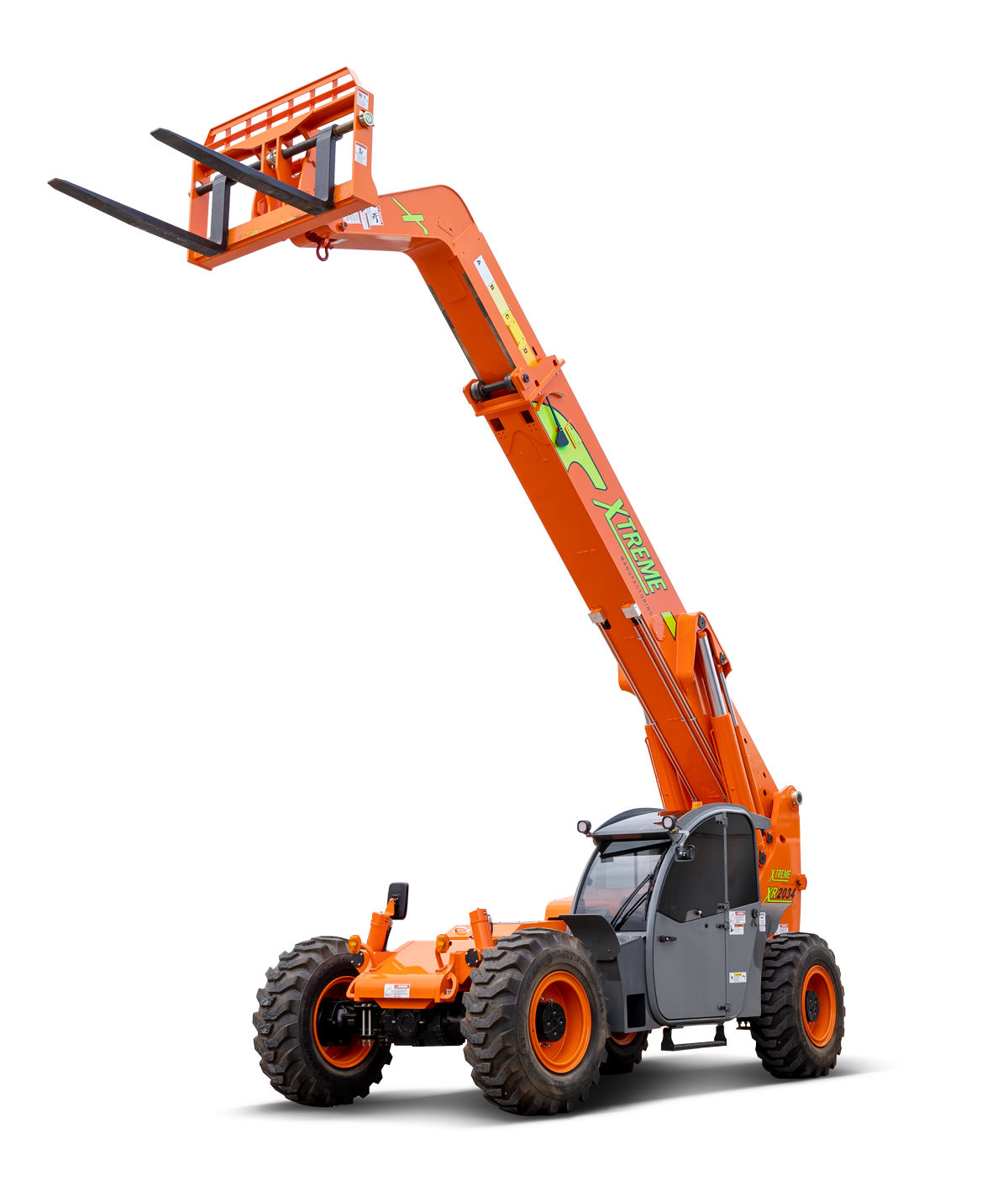

XR2034-C

Model

Increased capacity, while still maintaining excellent jobsite maneuverability.

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank ˝Y˝ frame handle
  • Trunnion mounted sway cylinders
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics
  • Individual gauges/switches
  • Steel dash
  • Steel hood
  • Center mounted powertrain
  • Solid steel plate chassis
  • Long life boom rollers
  • Rear axle stabilization (RAS)
  • Cab step
  • Back up alarm with light
  • Dual batteries
  • Electrical aux hydraulic control
Class Carriage
C
Capacity Weight
20,000 lbs
Lift Height
34 ft
Forward Reach
16 ft 7 in
Frame Leveling L/R
8 degrees
Machine Weight
41,450 lbs
Engine
Cummins 3.8L 130hp (Tier 4F)
Axles
Dana 213
Transmission
Dana T20000
Fuel Capacity
72 gal
Tires
Foam Filled 17.5 x 25
Hydraulic Flow (per min)
49 gal
Hydraulic Pressure
4,000 psi
Hydraulic Oil Capacity
58 gal
Length to fork face
22 ft 1 in
Width
102 in
Height
8 ft 11 in
Wheel Base
147 in
Ground Clearance
15 in
Turning Radius
15 ft 10 in
Outriggers
No
Enclosed Cab W/ Heat
Enclosed Cab W/ Heat & Ac
Open Cab
Fixed Carriage 48″
Fixed Carriage 60″
Fixed Carriage 72″
Fixed Carriage 96″
ADJ Carriage 96″ (Fork Positioning)
Swing Carriage 72″
ADJ Carriage 60″ (Fork Positioning)
ADJ Carriage 72″ (Fork Positioning)
Side Tilt 52″
Side Tilt 72″
Side Shift With Fork Adjust Carriage 96″
Fixed Carriage 42″
Carriage Fork 6 X 2.50 X 72
Block Fork 2 X 2 X 48
Carriage Fork 6 X 2.50 X 60
Carriage Fork 6 X 2.50 X 96
Carriage Fork 7 X 3.00 X 72
Carriage Fork 6 X 2.50 X 48
Carriage Fork 6 X 2.50 X 120
Carriage Fork 7 X 2.50 X 60
Carriage Fork 7 X 3.00 X 60
Carriage Fork 7 X 3.00 X 96
Foam Filled Tires 17.5 X 25 G2
Foam Filled Tires 17.5 X 25 E3
Solid Tires 17.5 X 25 McLaren G2
Solid Tires 17.5 X 25 Non Directional E3 Maxim
Battery Blanket
Boom Maintenance Stand
Boom Work Lights-LED
Cold Weather Synthetic Oil
Custom Decal Setup
Enclosed Cab Clear Glass
Flashing Amber Beacon (Strobe)
Flashing Green Strobe
Fuel Cap Locking
Hydraulic Tank Heater
Machine Lifting Points
Rear Cab Work Lights-LED
Rear Camera Option
Rotating Amber Beacon
Special Paint (Excluding The Cab)
Special Paint (Including The Cab)
Swivel Hook
Steel Fender Option
Tail/Turn Lights W/Strobe
Cab Heater-Auxilliary
Tail/Turn Lights W/o Strobe
KIT, LMI Dovertwg
Pintle Hook
Dual Batteries
Top Curved Glass
White Noise Backup Alarm
Limited Slip Axle-Front (Dana 213)
No Accessory Products found.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
