REQUEST A QUOTE

Lift Height

6,000 lbs

Capacity

Engine

max

Maximum Height

Capacity Weight

11 ft

Forward Reach

Bed Capacity

two capacity

Tow Capacity

Bed Length

Dove Tail Capacity

Cummins 15L Engine

Minumum Height

Inside Ramp Width

19 ft

Max Lift Height

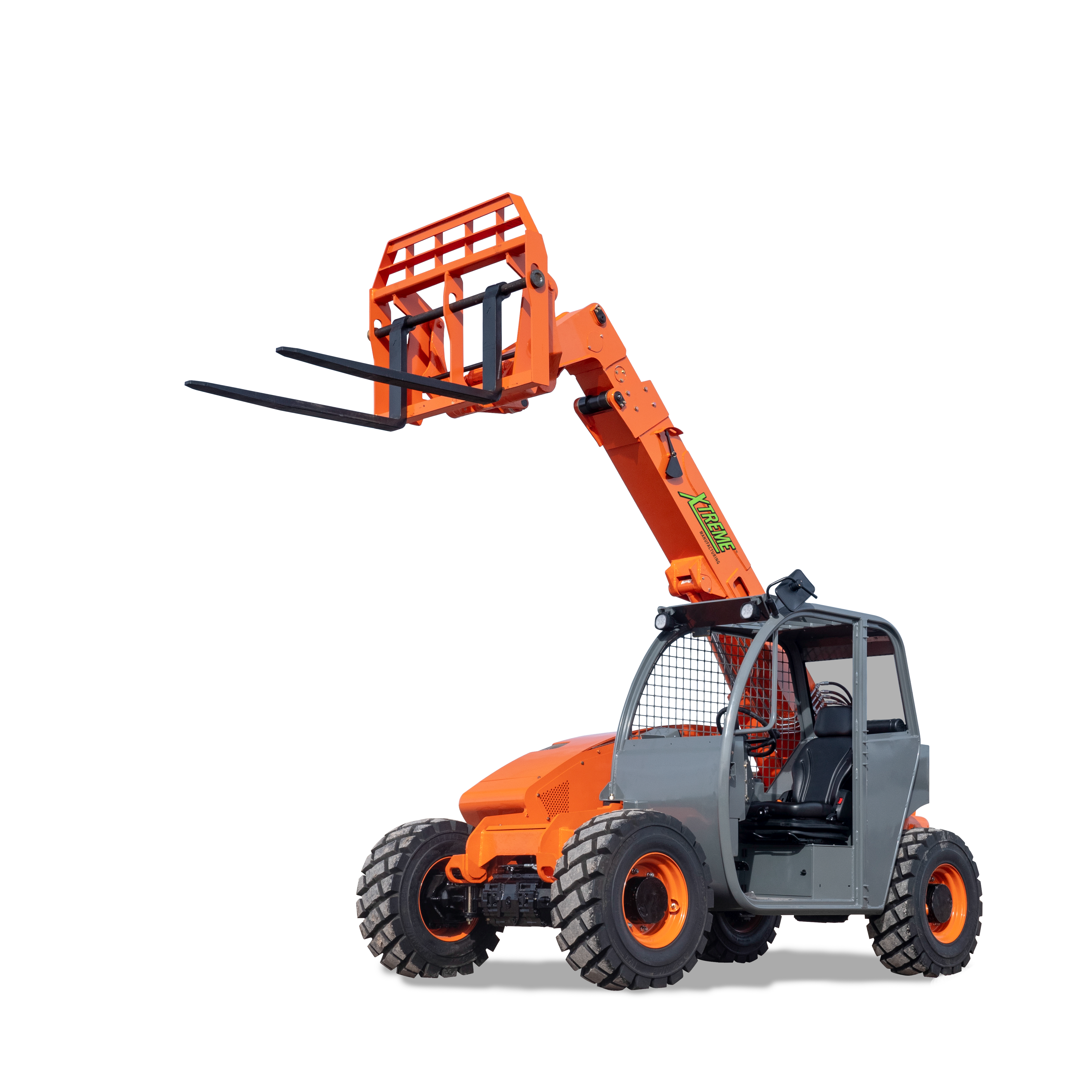

XR619-A

Model

  • 360° operator visibility
  • Ductile steel manifold
  • Suspension seat
  • Easy cab mounted grab handles
  • Easy service access
  • Master disconnect switch
  • Protected tilt & extend cylinders
  • Boom lift point
  • Steel hydraulic & fuel tanks
  • Manual lowering valve (cylinders)
  • Long life Lexan labels
  • Large cross section boom
  • Suspended pedals
  • Easy tie downs
  • Large capacity fuel tank
  • Heavy duty pre-cleaner
  • Melonite pins
  • Additional high pressure hydraulic filter
  • Standard auxiliary hydraulics Individual gauges/switches
  • Steel dash Solid steel plate chassis
  • Long life boom rollers
  • Back up alarm
  • Electrical aux hydraulic control
  • Battery
  • Side mount engine
  • Limited slip front axle
  • Hydrostatic rivets
  • Fiberglass engine hood
Class Carriage
A
Capacity Weight
6,000 lbs
Lift Height
19 ft
Forward Reach
11 ft
Frame Leveling L/R
N/A
Machine Weight
10,300 lbs
Engine
Deutz 2.9L 74 hp (Tier 4F)
Axles
Comer 128
Transmission
Linde
Fuel Capacity
17 gal
Tires
Pneumatic 12.00 x 16.5
Hydraulic Flow (per min)
26 gal
Hydraulic Pressure
3,200 psi
Hydraulic Oil Capacity
24 gal
Length to fork face
12 ft 8 in
Width
71 in
Height
6 ft 5 in
Wheel Base
93 in
Ground Clearance
10.8 in
Turning Radius
11 ft
Outriggers
No
Enclosed Cab W/ Heat
Enclosed Cab W/ Heat & Ac
Open Cab
ADJ Carriage 48″ (Fork Positioning)
Fixed Carriage 48″
Fixed Carriage 60″
Fixed Carriage 72″
Swing Carriage
Side Tilt Carriage 48″
Carriage Fork 4 X 1.75 X 42 W/ 3/4″ Hole Drilled 3″ From Tip
Carriage Fork 4 X 1.75 X 48
Carriage Fork 5 X 1.75 X 72
Carriage Fork 5 X 1.75 X 72 W/1.25″ Hole
Carriage Fork 5 X 1.75 X 96
Carriage Forks 2 X 2 X 48 (Block)
Carriage Fork 5 X 1.75 X 48
Air Filled Tires 12 X 16.5 Non Directional
Option Tires 12 X 16.5 Non Directional FF
Option Tires 12 X 16.5 R4 AF
Option Tires 12 X 16.5 R4 FF
1200 X 16.5 Non Marking Air Filled
Assy, Tire/wheel SLD NM
Assy, Tire/wheel SLD
Air Shutoff Valve
Battery Blanket
Boom Hook
Boom Hook Swivel W/bearing 3t
Boom Maintenance Stand
Boom Work Lights-LED
Cab Work Lights-enclosed Cab
Cold Weather Synthetic Oil
Custom Decal Setup
Enclosed Cab Clear Glass
Flashing Amber Beacon (Strobe)
Flashing Green Strobe
Fuel Cap Locking
Hydraulic Tank Heater
KIT, Fire Extinguisher
Pintle Hook Tow Hitch
Rear Cab Work Lights-LED
Rear Camera Option
Rotating Amber Beacon
Secondary Seatbelt Switch Beacon
Swivel Hook
Tail / Turn Lights Running & Brake Lights
Special Paint (Including Cab)
Special Paint (Excluding Cab)
Machine Lift Points
4′ X 4′ Personal Platform (Star)
4′ X 6′ Personal Platform (Star)
Universal Skid Steer Adapter
Bucket 1.00 Yd
Jib 6′ Material Handler (1k Capacity)
Truss Boom 6′ W/ Winch
Truss Boom 3′ W/ Winch
Truss Boom 6′ W/O Winch
Truss Boom 3′ W/O Winch
No Accessory Products found.

Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to the appropriate Xtreme Manufacturing operation manual for detailed instructions on proper use, specifications and maintenance of equipment.
